Please note, due to covid related supplier issues component specifications may change.The Cub-Scout 26” is not just another kids bike: taking inspiration from our award-winning Scout adult hardtail range, the Cub-Scout 26” has been designed from the ground-up as a proper mini-hardtail mountain bike. It has been designed to allow kids to learn the ropes of riding, inspire confidence on the trails and act as the perfect platform for progression. Developed and tested with the help of our own children, we have created a class leading lightweight kids bike range to inspire and nurture budding future World Cup or EWS winners!
The range of Cub-Scout Hardtails are available in 20”, 24” or 26” options; meaning that there should be a bike to suit kids of all sizes from aged 5 and up. Each bike features a lightweight custom butted 6061 Alloy frameset with bang up to date long, low and slack kids specific geometry.
UPDATED KIDS SPECIFIC COMPONENTS:
Proper fit and function of components is essential for kids bikes because adult components are not optimised for smaller people. To ensure that these bikes fit and function perfectly, we took the time to test and develop our own or work with our partners to select the best kids-specific components we could find on the market.
Kid Specific Parts Include:Cub-Scout 26” Frame X-Fusion RC32 Air Suspension forks Tektro Hydraulic Disc Brakes with short stroke levers for smaller hands
Nukeproof Urchin Saddle Nukeproof Urchin Handlebar (20” – 600mm/24” – 640mm/26” – 700mm)
Nukeproof Urchin Grips
160mm Samox 2 piece Crank
WTB STi 30 TCS Rims (Tubeless Ready)
Large Volume 2.5” Maxxis Minion DHF Tyres to ensure grip and a smooth ride
Features:Frame: Nukeproof Cub-Scout 26”, custom butted hydro-formed 6061 Alloy, internal cable routing for dropper seat post, threaded bottom bracket, 142mm Bolt-thru rear axle spacing

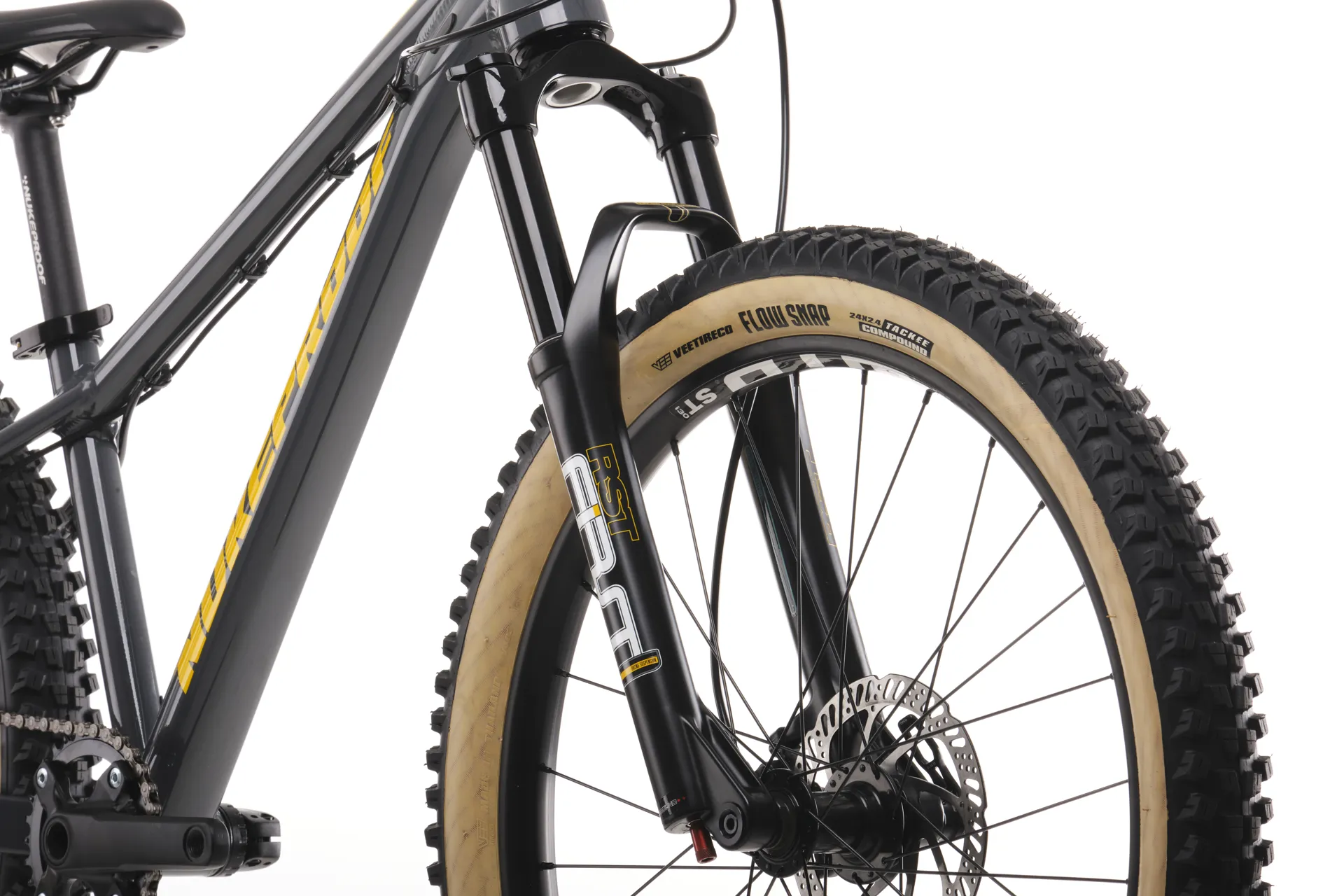

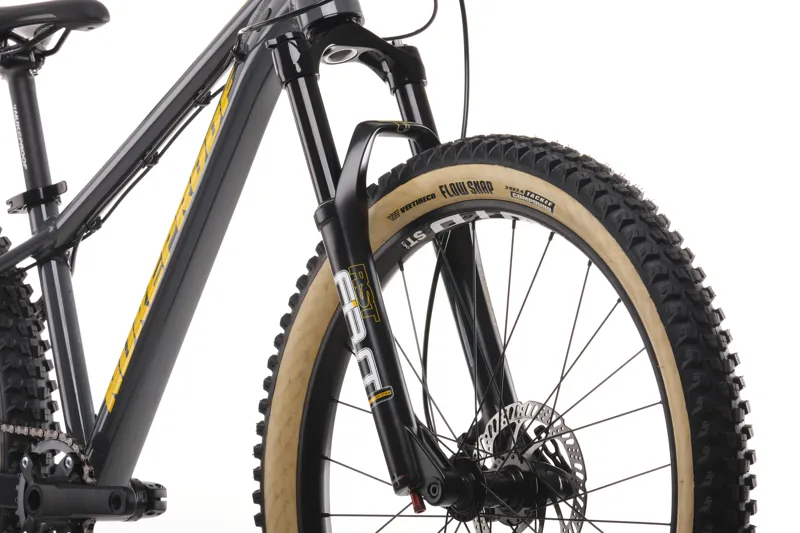

Fork: X-Fusion RC32 27.5” Air Suspension forks, 100mm travel, 1.5” Tapered Steerer, 46mm Offset, 15x110mm Bolt-thru Axle
Axle to Crown: 514mm
Fork Offset: 46mm
Front Wheel: Joytec D041-B15 15x110mm BOOST hub on WTB STi30 26" TCS Rim
Rear Wheel: oytec D952TSE-X12 12x142mm hub on WTB STi30 26" TCS Rim
Wheel Size: 26"
Tyres: Maxxis Minion DHF 26x2.5" EXO TR (Tubeless Ready)
Max Tyre Size: 2.6"
Crankset: Samox TAF38J 2 Piece Crank 160mm, 32T, BCD 104mm
Protection: Kevlar Chainstay Protector
Brakes: Tektro M276 Kids Specific Hydraulic Brakes
Front Rotor: Tektro Wave, 160mm
Rear Rotor: Tektro Wave, 160mm

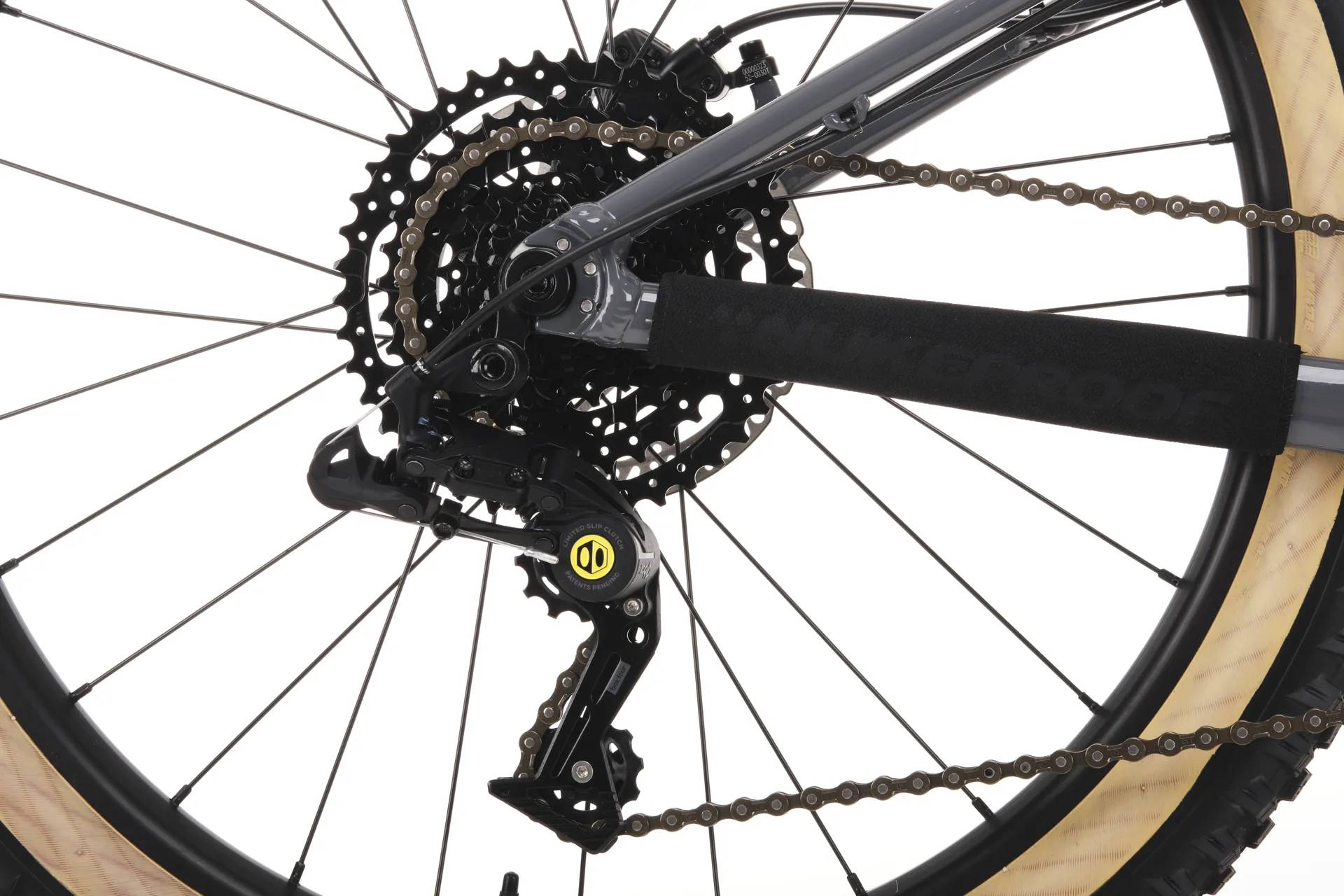

Rear Derailleur: BOX FOUR Short Cage 8-Speed with Clutch
Chain: BOX FOUR 8-Speed
Chain Guide: ISCG05
Cassette: Sunrace CSMS2 8-Speed, 11-46T

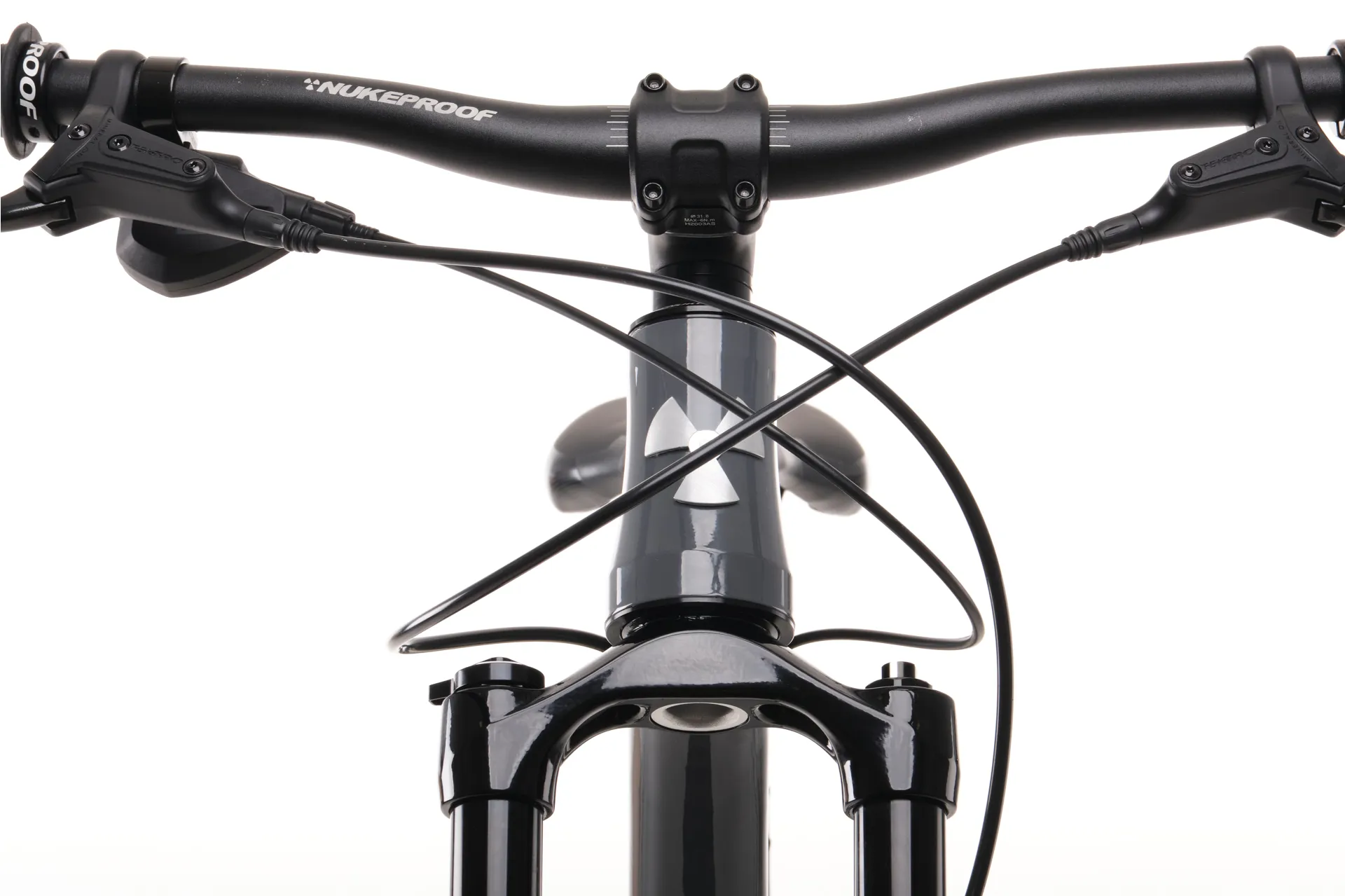

Handlebars: Nukeproof Urchin 700mm Wide, 15mm Rise, 31.8mm Clamp
Stem: OEM 50mm, black

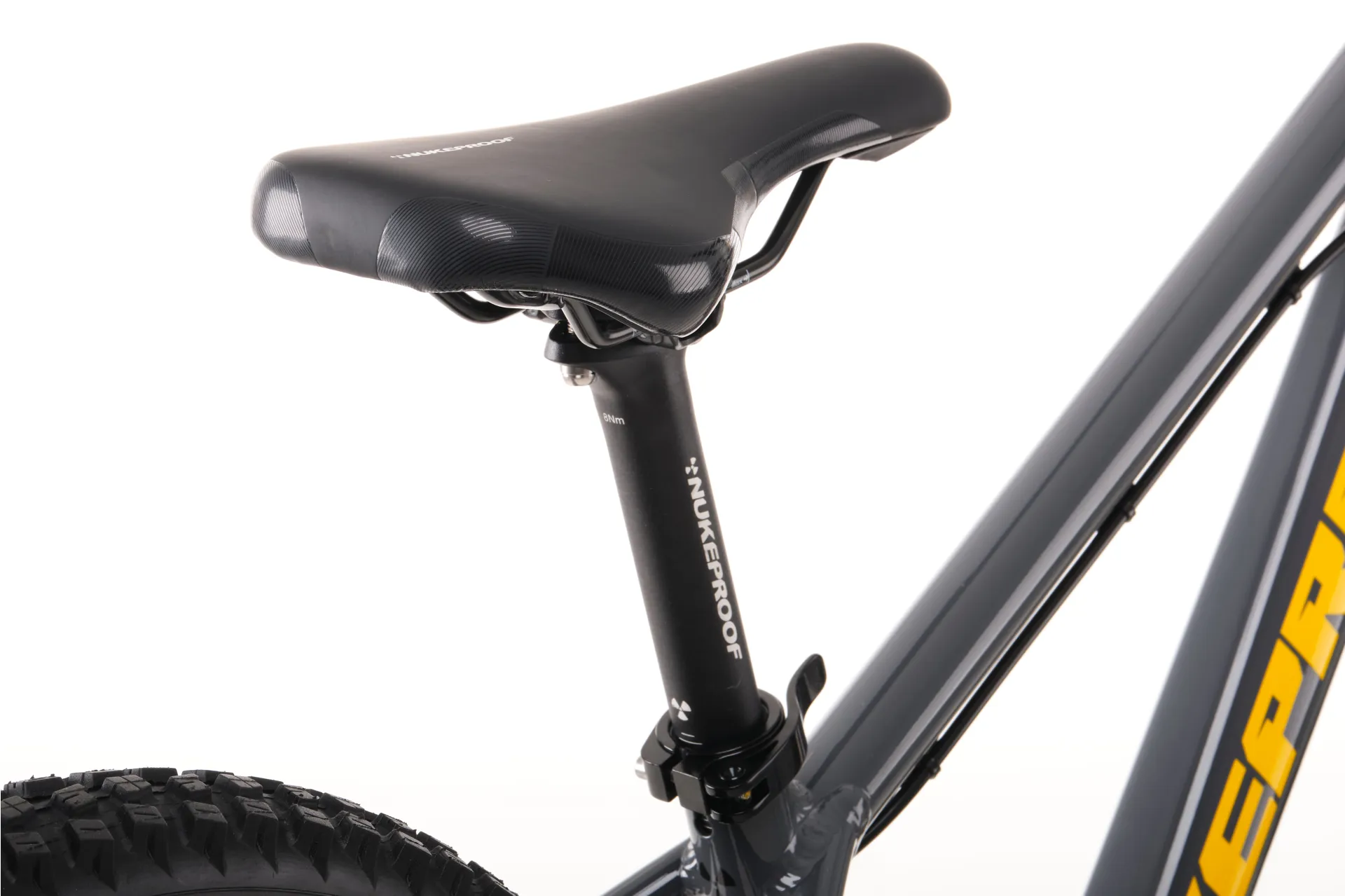

Saddle: Nukeproof Urchin, Black
Seatpost: Nukeproof Urchin, Black, 27.2mm, 300mm Long, 0 Offset
Seat Clamp: 31.8mm
Headset: Nukeproof Warhead, 44-44 IESS, ZS44-28.6 - T2 / ZS44/30-S - B3 (For Straight Steerer fork)
Bottom Bracket: Threaded 68mm BSA
Grips: Nukeproof Urchin Single Clamp lock on, 115mm Long, Soft Compound
