PLEASE NOTE, SPECIFICATION MAY VARY
Nukeproof Mega 275 Comp
For over 10 years, our best-selling model; the Mega has been racking up awards on Enduro stages and in the press around the world. With 4 Enduro World Series titles to its name, the Mega has become an icon that is synonymous with racing. However, we never rest on our laurels and 2021 sees the introduction of the 4th generation Mega.
Since 2009 the Nukeproof Mega has been on a constant development to meet the demands of our riders and customers alike.
To optimise the strength and weight, the Mega is constructed fully out of T6061-T6 Aluminium including all forged part.
After winning 4 Enduro World Series Titles in 3 years the all new design is an evolution of our ultimate Enduro bike. At the heart of the frame is all new suspension Kinematics, designed to be more subtle off the top, whilst remaining progressive and predictable . Anti-Squat is used to create an effective pedalling bike that can be thrashed through technical terrain. The useable SAG range is also widened to allow riders to tune the suspension to the trails. Other key features include:
All New Aluminium chassis
Designed and improved suspension kinematics
All new Geometry
Optimised sizing/fit - Small to XXL
Sram UDH
Now fits a 750ml water bottle inside the main front triangle!
The new Mega frame is optimised around the rider and weight distribution. The new geometry features dynamic saddle offset. Seat angles are optimised for each frame size and the seat tube itself is designed to take a longer dropper post if required.
Updated Sizing/Geometry:
Whilst humans may not have changed size much in recent years; the bikes they choose to ride most certainly have. To ensure a perfectly dialled fit Nukeproof now offer 5 frames sizes: Small through to XX-Large with evenly spaced jumps between each.
Lower, longer, steeper and slacker! The Mega's new geometry is now designed around the saddle offset for each size to optimise seated weight distribution. This results in steeper seat angles across the board but especially on larger sizes for taller riders. This in turn results in longer reach figures to ensure a comfortable cockpit on each size. To further aid the perfect fit we have also used shorter seat tubes which are designed to maximise seat post insertion depths. Finally, all new Mega bikes are now designed to use short offset forks to further improve both climbing and descending capabilities
PLEASE NOTE THIS BIKE DOES NOT COME WITH PEDALS
Spec:
Frame: Nukeproof Mega V4 275 Alloy, 165mm Travel, custom triple butted hydro-formed tube set, internal cable routing, ISCG 05 mount, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection
Fork: RockShox Yari, Motion Control RC damper, 170mm, 37mm Offset, BOOST, Debonair, Gloss Black

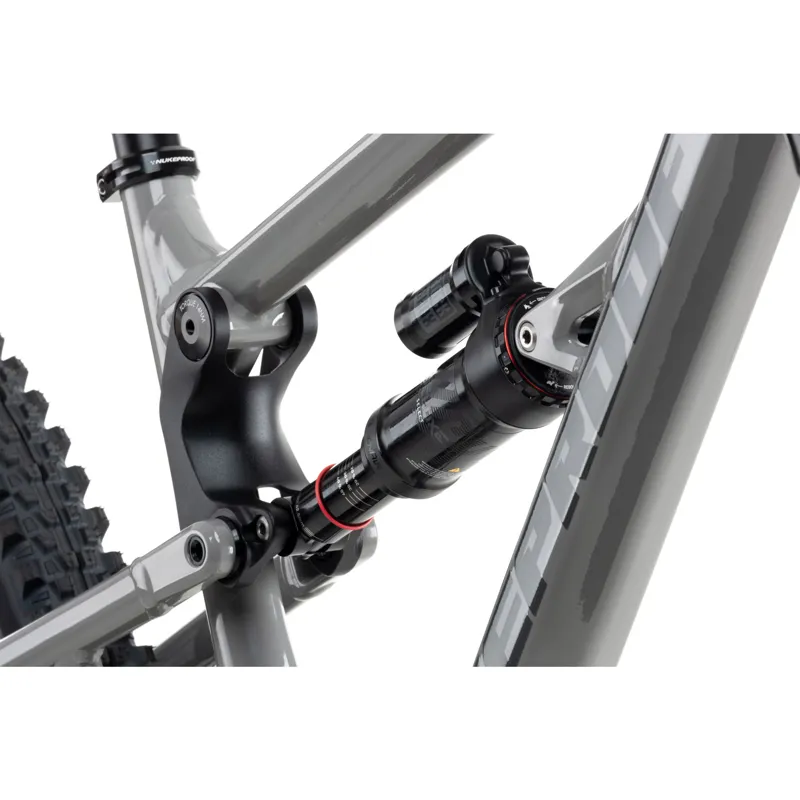

Shock: RockShox Super Deluxe Select R, Custom LIN L1 HOTDOG tune, 230x62.5mm, Bearing End, 2 bottomless tokens fitted
Front Wheel: Sun-Ringle Duroc SD37 Comp 27.5", 15x110mm
Rear Wheel: Sun-Ringle Duroc SD37 Comp 27.5", Shimano Microspline Driver, 148x12mm
Tyres: Front: Michelin Wild Enduro 27.5" x 2.4, GUM-X TS TLR, Rear: Michelin Wild Enduro 27.5" x 2.4, GUM-X TS TLR

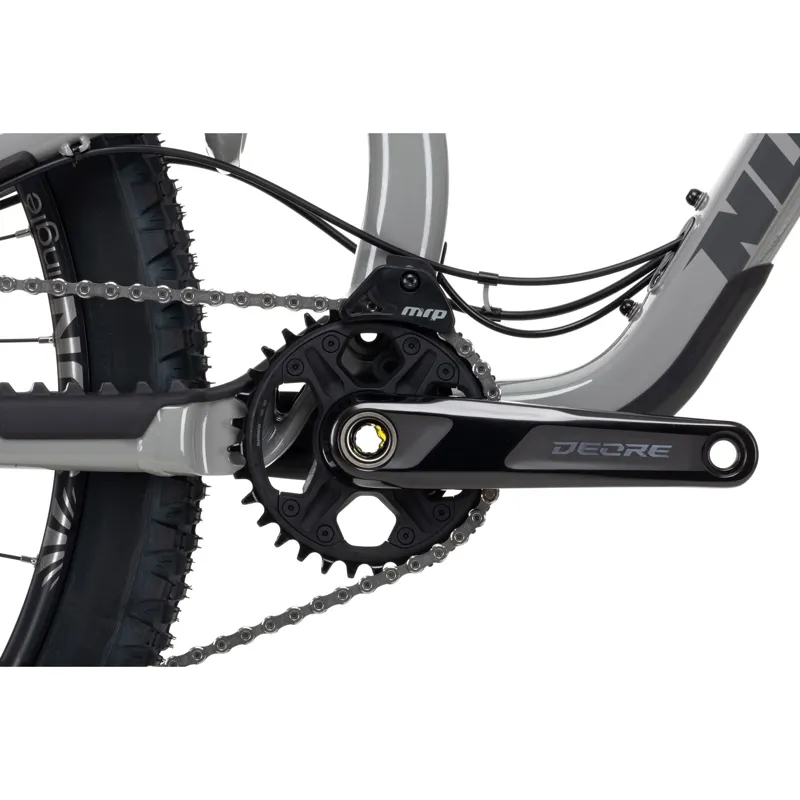

Crankset: Shimano Deore M6100 12 Speed Crank, 170mm, 32T, 52mm Chainline
Shifter: Shimano Deore M6100-IR, 12-speed Rapidfire Plus, I-Spec EV

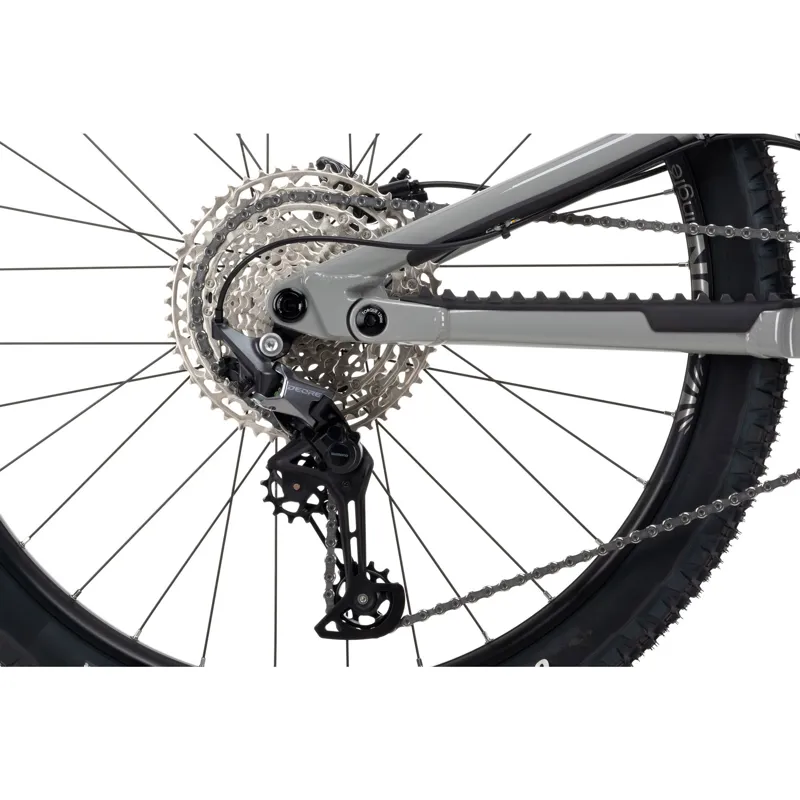

Rear Deraileur: Shimano Deore M6100, SGS 12-Speed, Shadow Plus
Chain: Shimano Deore M6100 12-Speed
Cassette: Shimano Deore M6100 12-Speed (HYPERGLIDE+), 10-51T
Chain Guide: MRP 1x CS, 28-34T, ISCG-05, black

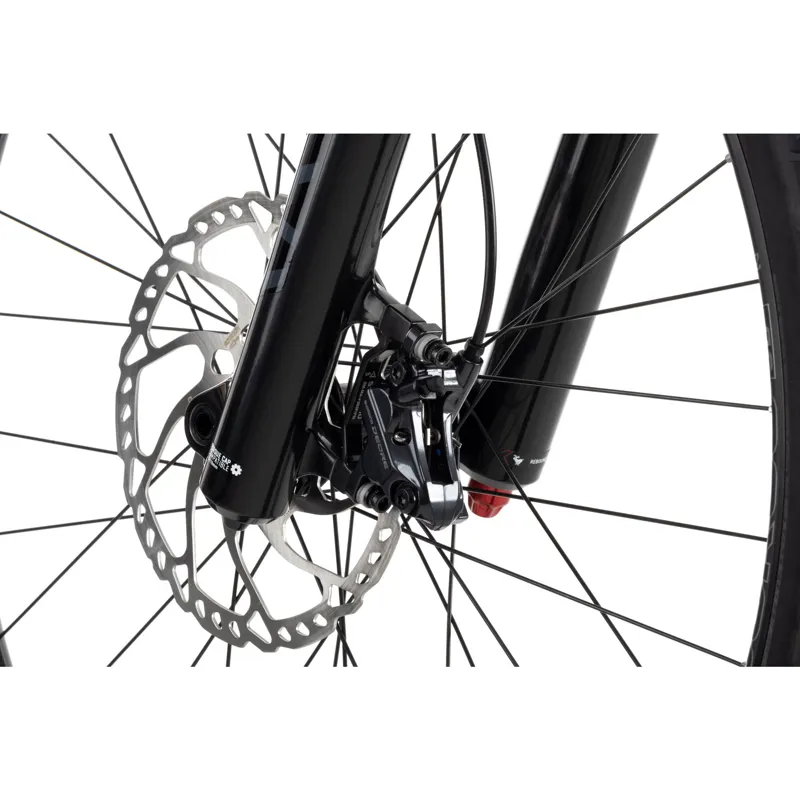

Brakes: Shimano Deore M6120 4 pot brake, Resin Pads
Front Rotor: Shimano SM-RT66, 203mm
Rear Rotor: Shimano SM-RT66, 180mm

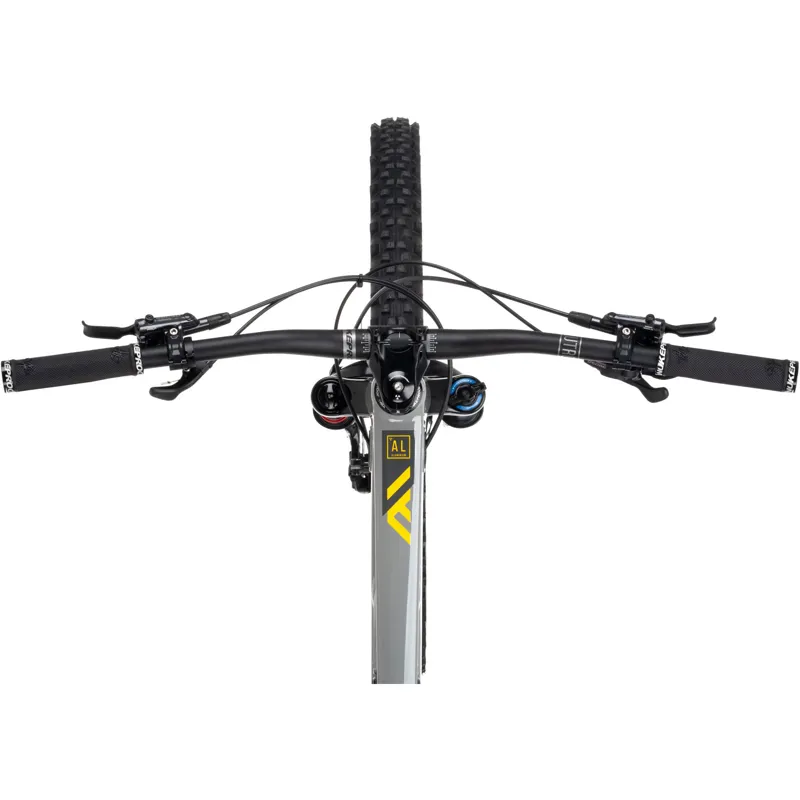

Handlebars: Nukeproof Neutron V2 25mm Rise, Width - S780mm, M780mm, L800mm, XL800mm, XXL800mm)
Stem: Nukeproof Neutron AM, 45mm, black
Saddle: Nukeproof Horizon Enduro, black

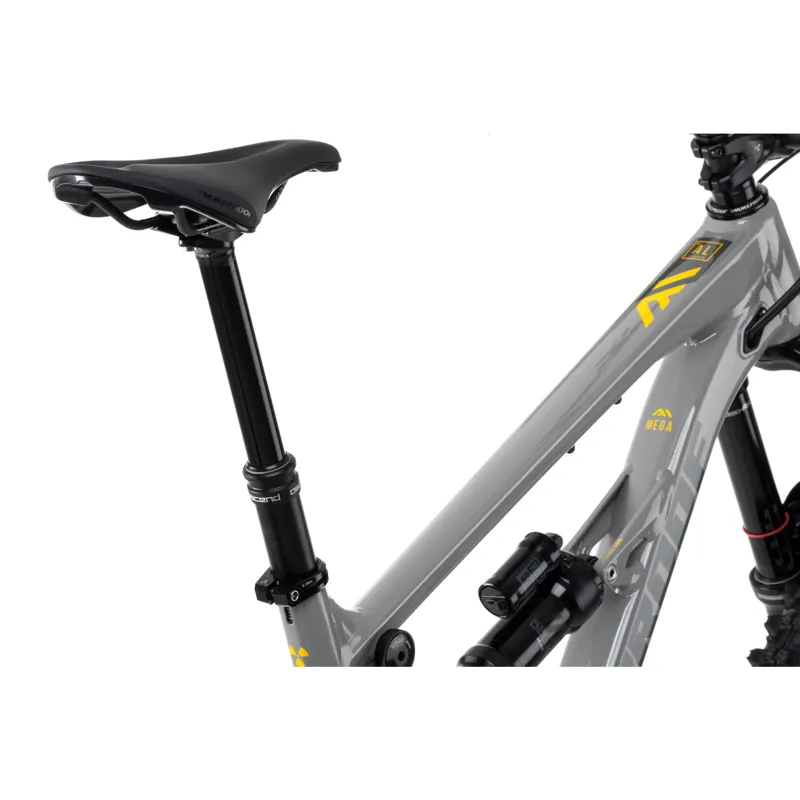

Seatpost: Brand X Ascend internal, 31.6mm, S:125mm drop; M:150mm drop; L/XL/XXL: 170mm Drop
Headset: Nukeproof, 44-56 IITS
Grips: Nukeproof Sam Hill Signature
Weight: 15.4Kgs/33.9lbs (Tubeless)
Key Information:
Material: Hydroformed 6061-T6 Triple-Butted Aluminium
Fork Travel: 170mm
Axle to Crown: 562mm
Fork Offset: 37mm
Rear Travel: 165mm
Wheels Size: 27.5"
Max Tyre Size: 2.6"
Recommended Shock Sag (Measured seated): 30%
Shock Size: 230x62.5mm
Shock Hardware F: 25x8mm
Shock Hardware R: 30x8mm

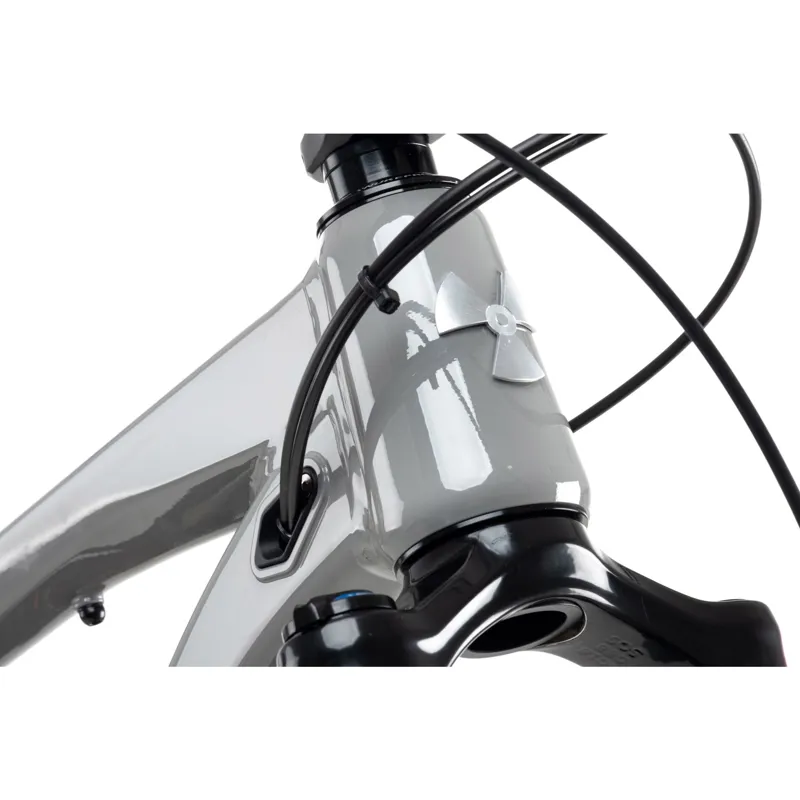

Headtube: 44-56mm Tapered Semi-Integrated
Headset: ZS44-28.6 - T2 / ZS56/40 - B8
Bearings Required: 4x F6802 LLU MAX, 4x 6902 LLU MAX, 2x F6902 LLU MAX-EA
Seatpost: 31.6mm (Internal Routing for Dropper Seatpost)
Seat Clamp: 34.9mm
BB: Threaded 73mm BSA
Rear Hub: Boost 148x12mm
Rear Axle: SRAM UDH Maxle Stealth M12x1.0 180mm (Thread Length 13mm)
Chain Guide: ISCG05
Brake Mount: 180mm Direct Post
